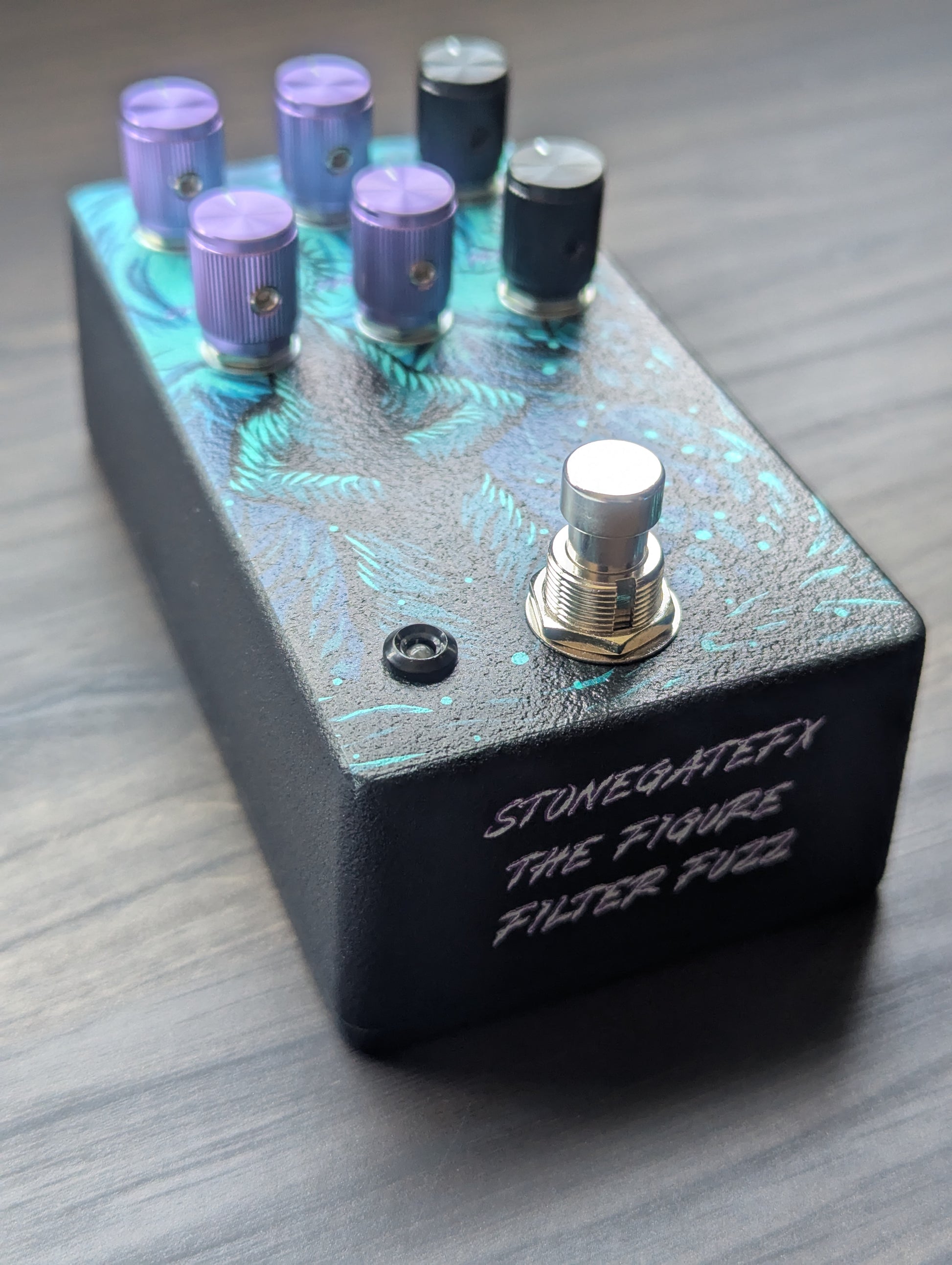

The Figure Filter Fuzz

Shape the Chaos

Most fuzz pedals give you a wall of sound.

The Figure Filter Fuzz lets you sculpt it.

Built around a rich, expressive fuzz circuit and paired with dual active filters, the Figure Filter Fuzz offers a level of tonal control rarely found in traditional fuzz designs. From thick, woolly saturation to sharp, cutting leads, it gives you the tools to carve your own sonic signature.

This isn't just a fuzz pedal—it's a fuzz pedal with a voice that can be shaped, refined, and transformed.

Dual Active Filters

Unlike passive tone controls that can only remove frequencies, the Figure Filter Fuzz features two active filter stages that allow precise tonal shaping.

Mid Filter 1-4khz

This control shapes the upper-midrange frequencies where guitars naturally cut through a mix.

High Filter 9-14khz

This filter controls the upper treble and "air" frequencies.

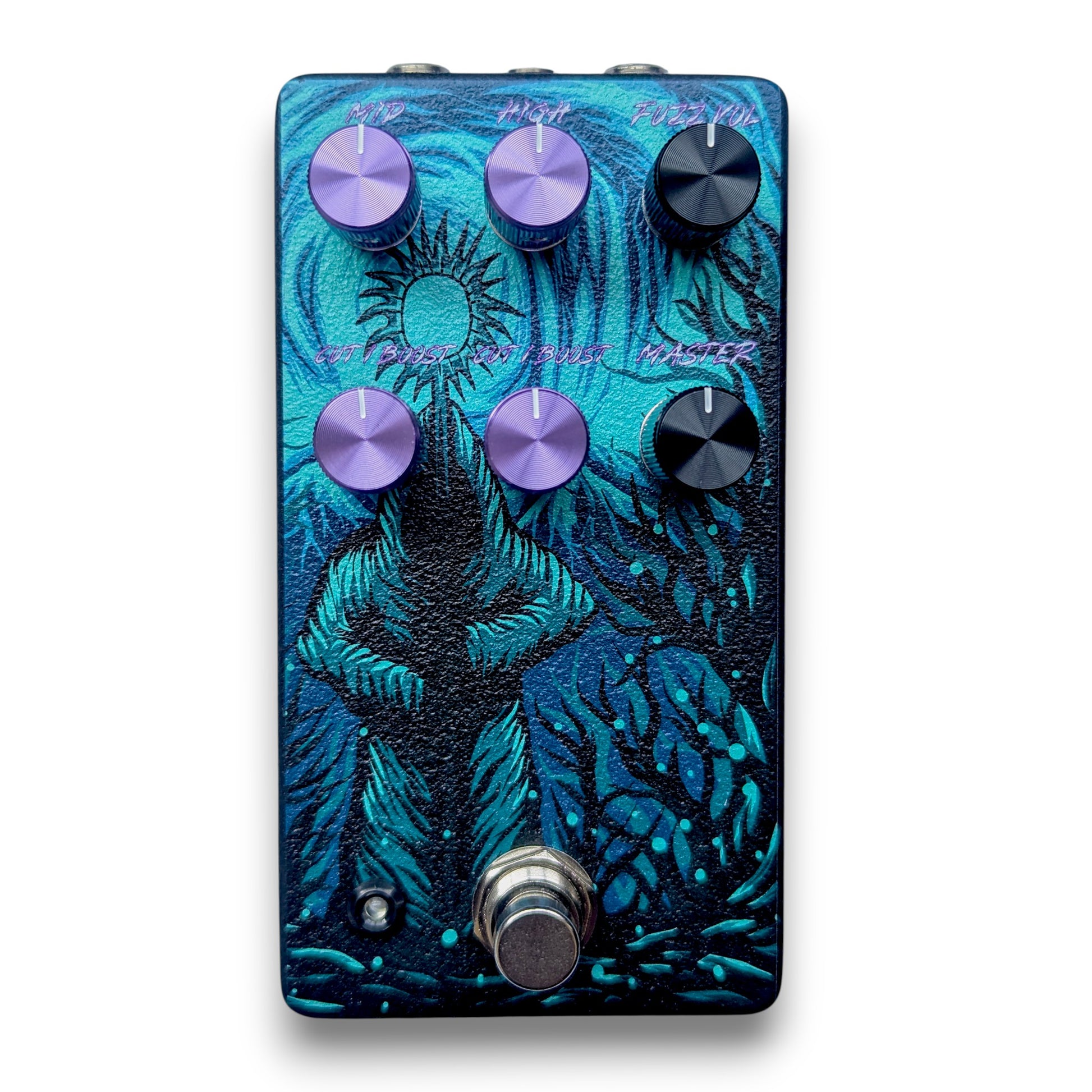

Controls

Fuzz Vol

Sets the output volume of the fuzz going into the dual filters

Master

Controls overall volume; placed after fuzz and filters

Mid

Active control of upper-mid frequencies (1kHz–4kHz).

High

Active control of upper treble frequencies (9kHz–14kHz).

Cut/Boost x2

Corresponding to the mid/high filter above it, controls the amount of boost (clockwise), or cut (counterclockwise) of the chosen frequency. Both feature a center detent at which the filters are neutral

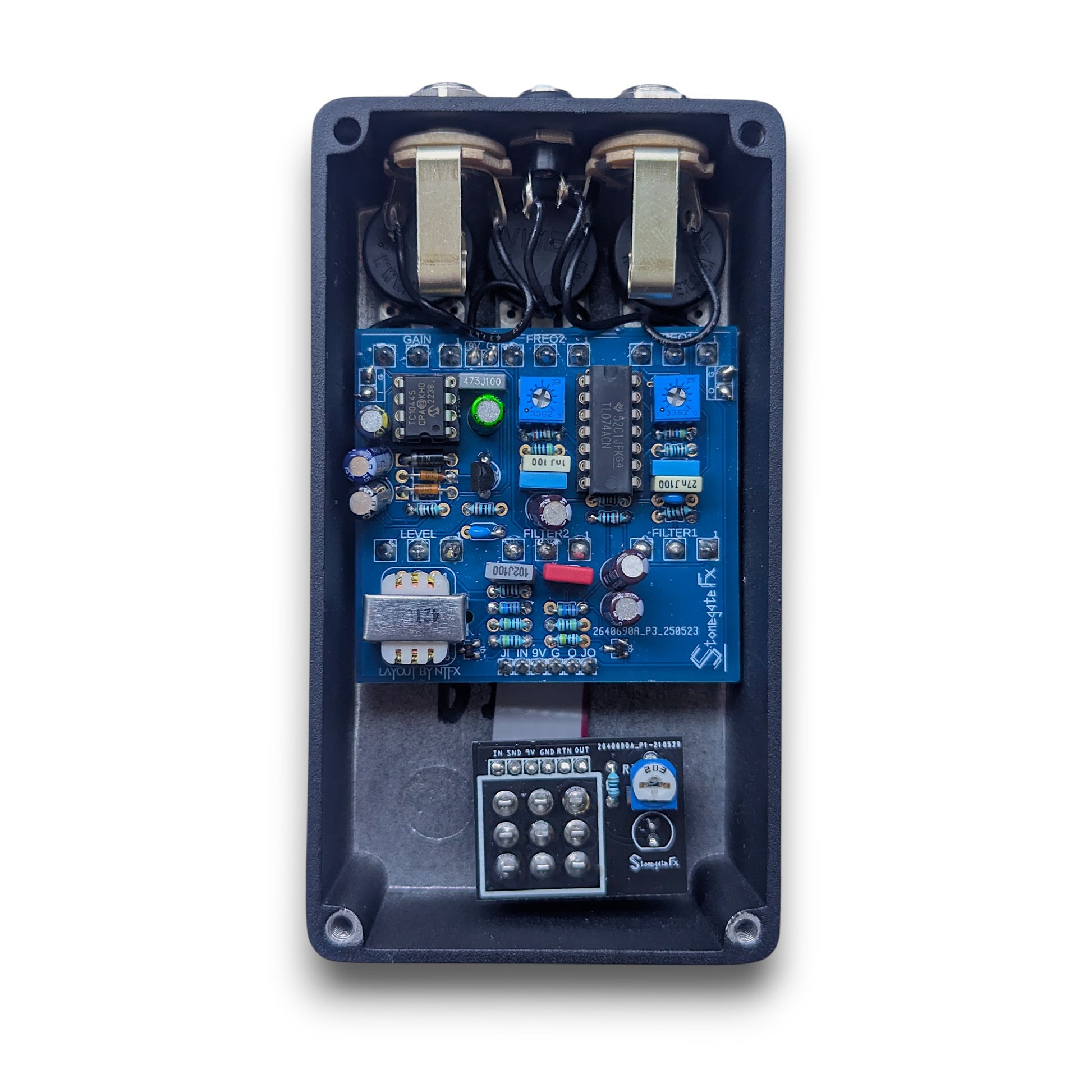

Internal Controls:

Freq1 MID - Internal trimpot, controls the Q or "width" of the filter

Freq2 HIGH -- Internal trimpot, controls the Q or "width" of the filter

Clockwise = Narrower

Counterclockwise = Wider

Features:

• Premium components for low noise operation
• Pickup simulator (can be placed anywhere in the pedal chain)
• Top-mounted jacks for pedalboard-friendly layout
• Mechanical true bypass switching
• Matte black sand textured enclosure with UV-printed artwork
• Internal LED brightness control
• Lumberg power jack
• Switchcraft/lumberg audio jacks

• Vimex/Alpha potentiometers
• Alpha footswitch
• Gold-plated PCB for durability and corrosion resistance
